Jinbei TR-Q7 MKII Universal Transmitter
CHF 109.00*
Ready for immediate shipment, arrival in: 1-2 Working Days
✅ Pick up after order in Langnau possible
- own warehouse
- fast shipping
- shipping with Swiss Post
- pick-up after order possible
Jinbei TR-Q7 MKII Universal Transmitter
The Bluetooth-enabled Jinbei TR-Q7II TTL radio remote control for compatible Jinbei flash units combines high functionality and pleasant ease of use in one device.

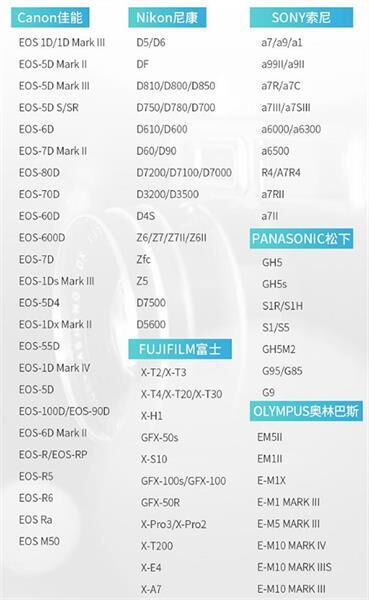

The TR-Q7II remote control works with the latest models from Canon, Canon RT, Nikon, Sony (with an adapter) Fuji, Olympus and Panasonic/Lumix.
With this transmitter it is also possible to control a Canon 600EX-RT.
With the TR-Q7II you can choose between manual flash power setting (1/ to 1/256) or TTL control including flash exposure compensation.
In addition to the High Speed Synchronization Hss, the performance spectrum includes synchronization to the first or second shutter curtain as well as 16 radio channels and three groups.

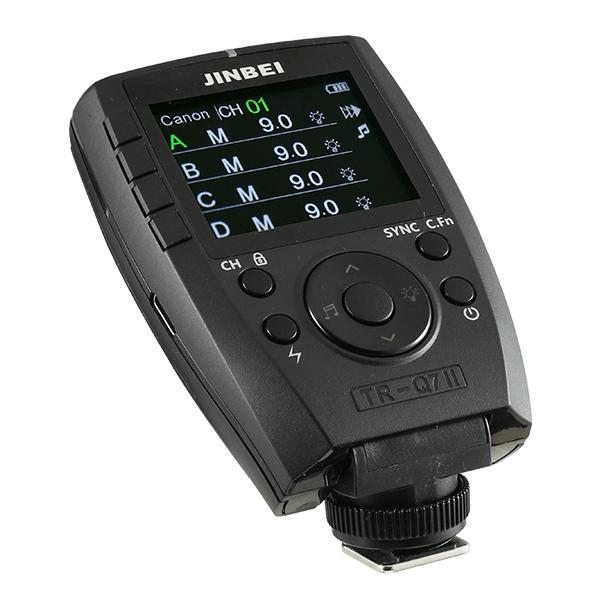

The TR-Q7II is operated via the high-resolution display of the remote control.
If the remote control sits in the camera's hot shoe, you have all buttons and displays directly in view thanks to the flexible design.
More functions with smartphone app
The smartphone control offers a wider range of functions. The app for Android smartphones is available for download on the Jinbei website, for Apple iPhones in the iTunes Store. After installing the app, you connect your smartphone to the remote control via Bluetooth.
You can set up to twelve "studios" with up to six groups each via the app. Colored assignments facilitate visual control in the group overview. Within the individual groups, you select the operating and sync modes as well as the additional functions Freeze (M) and Ratio / Ratio Control (TTL). These individual presets can be called up, changed or deleted at will and further simplify operation.
Compatible studio flash units / portable flash units:
Jinbei HD-610 Pro Studio Flash
Jinbei HD-400 Pro studio flash
Jinbei HD-2 Pro system flash
Jinbei HD-200 Pro flash
All advantages at a glance:
Flash and sync modes, radio channels and groups selectable
High resolution display
Ergonomic design
Firmware update via USB
Remote control via smartphone using an app (currently only in English)
Available for Apple iOS and Android smartphones
Extended range of functions with the app
Connection to flash trigger via Bluetooth

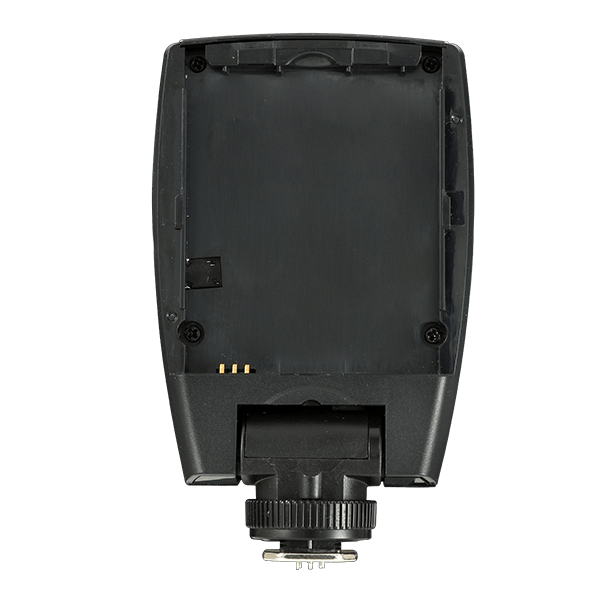

Battery changeable
Technical details:
Radio range: 2.4 GHz
Radio range: 100 m
Radio channels: 16
Groups: 3 / 6 (flash trigger / app), ratio / TTL ratio control (APP, 3 groups, All, A:B, A:B C)
"Studios" / Presets: 12 (App)
Supported flash modes: TTL (flash exposure compensation (± 3.0 EV), Manual (1/1 - 1/256, in 1/10 increments)
Sync modes: High Speed Sync Hss (camera-dependent, up to 1/8000 s), sync to 1st / 2nd shutter curtain, Freeze (M, App)
Additional features: Bluetooth (effective working distance 10 m), modeling light on / off, acoustic signal (on / off via app), test flash trigger
Standard Sync Speed: Canon 1/250s / Nikon 1/320s / Sony 1/250s / Fujifilm 1/250s
HSS Top Sync Speed: Canon / Nikon / Sony / Fujifilm to 1/8000s

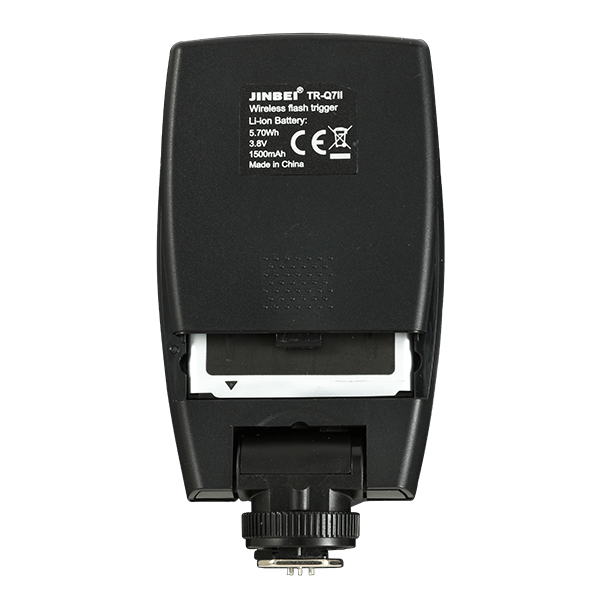

Power Supply: Battery

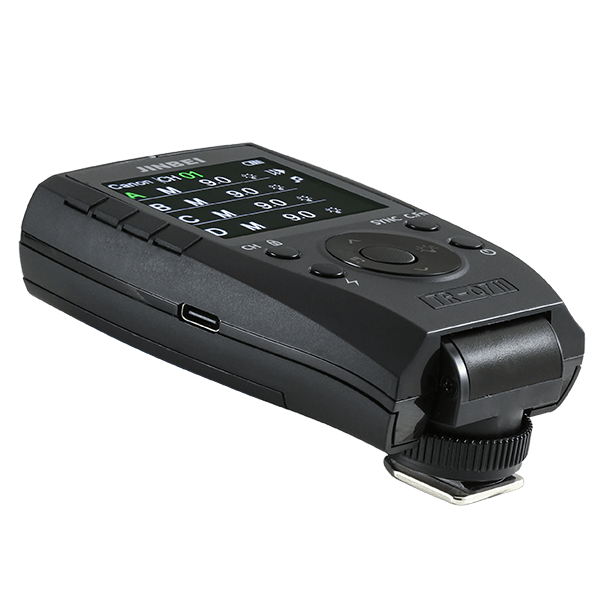

Connectors: Sync (2.5mm), USB-C
Other features: LCD display, test flash trigger, sleep mode
Dimensions: 9.6 x 6.5 x 4.0 cm (L x W x H)
Weight: 120 g
Scope of delivery:
1 x Jinbei TR-Q7II
1 x USB cable
1 x User manual (English)
You can find all the technical details in the TR-Q7 MK II instruction manual in English
