Peak Design Dual Camera Plate for Capture Camera Clip PL-D-2

CHF 32.00*

Ready for immediate shipment, arrival in: 1-2 Working Days
✅ Pick up after order in Langnau possible

Product number: 3B-129668
Our benefits
  • own warehouse
  • fast shipping
  • shipping with Swiss Post
  • pick-up after order possible
Our payment methods:

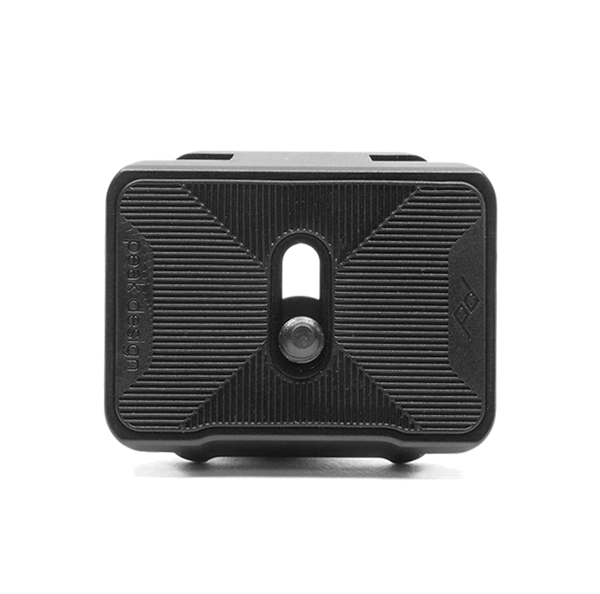

Peak Design Dual Camera Plate for Capture Camera Clip

Interchangeable plate for Capture Clips - different clamping profiles for Arca Swiss and Manfrotto RC2
The dual-plate camera plate fits all previous versions of the Capture Camera Clip. It can be used to attach a camera to a Capture Clip. The plate has different clamping profiles. There are Arca-Swiss compatible profiles on two opposite sides, while the other two profiles are Manfrotto RC2 compatible. The Dual Plate therefore also functions as a clamping plate for quick-release couplings that are either Arca-Swiss or Manfrotto RC2 compatible. This offers the advantage that you don't have to change the camera plate every time you remove your camera from the capture clip to attach it to a ball head.

Larger support surface than with the standard plate

Compared to the Standard Plate, the Dual Plate has a larger contact surface for the mounted camera. However, it has the disadvantage that it can only be inserted into a capture clip in two directions. With the Standard Plate, all four are possible.

Compatible with Manfrotto RC2 right from the start - no parts need to be fitted
The new Dual Plate is equipped with Manfrotto RC2-compatible profiles right from the start. No more parts need to be fitted to make the plate Manfrotto-compatible. This is where the plate differs from its indirect predecessor PROplate.

1/4-inch camera screw - can be moved to adjust the position of the plate
The camera plate is equipped with a 1/4-inch screw. Using the enclosed hexagon socket, you can screw the screw into the tripod thread of your camera to attach the plate to the camera. However, you can also use a spanner for this, as the screw has a spanner slot. The movable camera screw is a special novelty. The screw can be moved along a short groove. This gives you some leeway to attach the plate to your camera in such a way that it does not get in the way of the battery compartment cover or other components.

Features

CNC-milled aluminium
Corrugated support surface made of injection-moulded PVC - non-slip and gentle on the camera housing
Ö for attaching anchor loops to each corner of the plate
Can be used as a tripod thread adapter for all Peak Design straps
Technical details
Material: Aluminium, PVC
Dimensions: 11 x 52 x 42 mm
Weight: 28 g
Clamping profile: Arca-Swiss-compatible and Manfrotto-RC2-compatible
Camera screw: 1/4 inch

Scope of delivery

1 dual-plate clamping plate, 1 Allen key (4 mm)

Note

The two Manfrotto RC2-compatible clamping profiles of the Dual Plate differ slightly from each other. There is an indentation on one side that is not present on the other side. The plate can therefore only be inserted into an RC2-compatible coupling in one particular direction. The side with the indentation must point in the direction facing away from the locking lever of the coupling.

The dual-plate camera plate does not fit into the Manfrotto RC2 quick-release couplings. This mainly affects video heads. There are usually no problems with the open quick-release couplings that most panheads have.



Manufacturer "Peak Design"

Die Mission von Peak Design:

Kreativen Abenteurern zu ermöglichen, mehr zu erreichen und neue Wege zu beschreiten.

Als ein durch Crowdfunding finanziertes Unternehmen, das auf Kickstarter begann, hängt der Erfolg dieses Unternehmens davon ab, die Erwartungen der Unterstützer und Kunden zu erfüllen und sogar zu übertreffen.

Peak Design glaubt daran, dass es für ein Problem immer ein noch bessere Lösung geben muss. Als Designer glauben die Macher daran, dass aus Einfachheit Eleganz entsteht. Aus Einsatzflexibilität entsteht Funktionalität.

Peak Design hat ein eigenes kleines Universum der Tragesysteme und Taschen geschaffen. Alles passt zueinander und alles ist bis zum kleinsten Detail durchdacht. Besonders zu erwähnen ist der Capture Clip, mit dem man seine Kamera an einem Gurt, Gürtel oder Rucksack tragen kann, die Kameragurte Slide oder Leash, verschiedene Handschlaufen und die neuen Everyday-Messenger-Fototasche.

Aber gehen Sie doch selbst auf Entdeckungsreise.
