Godox GM55 4K HDMI Touchscreen 5.5" On-camera Monitor
CHF 220.00*
Ready for immediate shipment, arrival in: 1-2 Working Days
✅ Pick up after order in Langnau possible
- own warehouse
- fast shipping
- shipping with Swiss Post
- pick-up after order possible

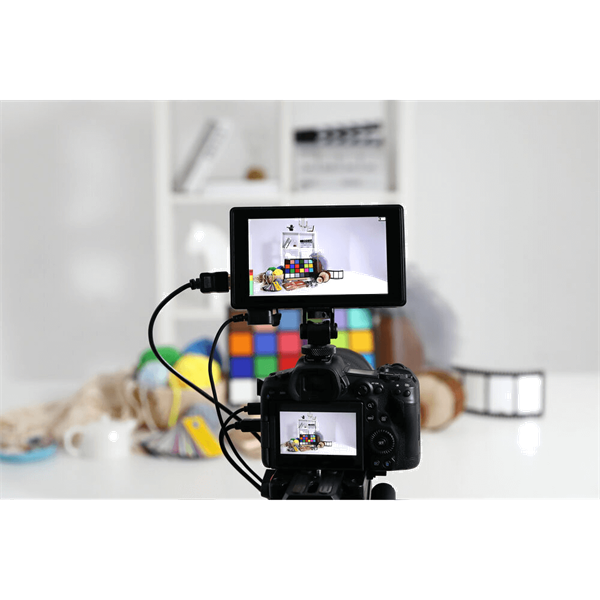

The Godox GM55 is a compact, 5.5-inch on-camera monitor with a lightweight plastic design, 1080p touchscreen display and HDMI input and output that supports up to DCI 4K24 and UHD 4K30 camera signals.

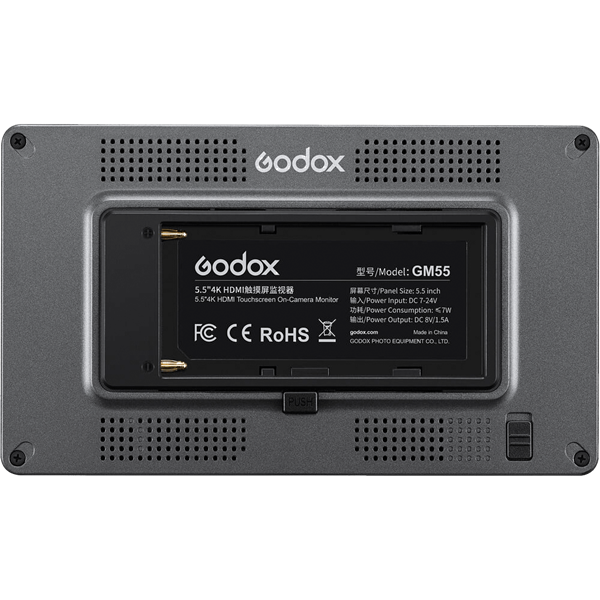

The output allows connection to a wireless transmitter so other operators can monitor the image on set. The GM55 also features a headphone jack and a proprietary camera control port for controlling shot start/stop and other basic functions of selected cameras via optional Godox control cables. The monitor comes with an L-series battery plate on the back and provides a DC input for optional power cables.

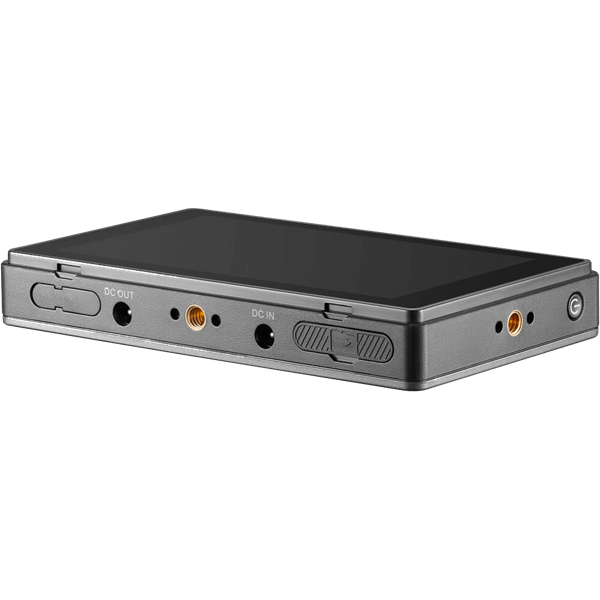

In addition, a DC output is provided to power selected cameras through the monitor. Batteries and power cables are sold separately.
The GM55 allows import of up to 25 3D LUTs via an SD card slot, which is covered with a protective cover, as is the camera control port (the SD slot is for LUT import only).
The GM55's extensive software features, such as false colour and vectorscope, can be adjusted via touchscreen using a simple interface with headings on the left and adjustment points on the right.

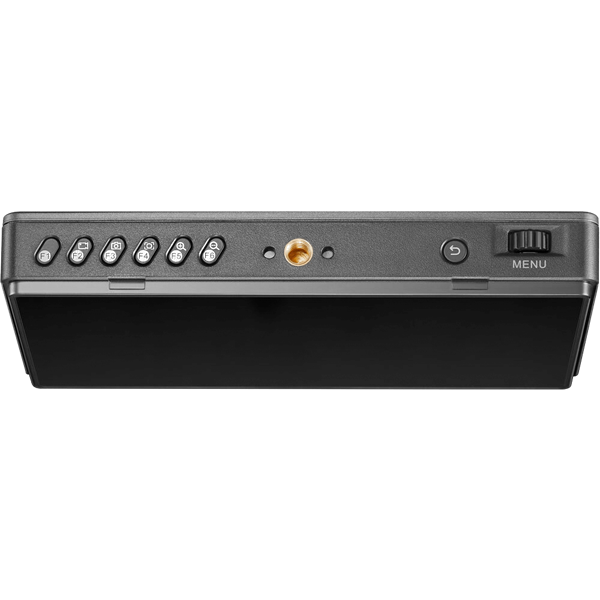

This allows for more detailed monitoring of sharpness, exposure and other factors. The menu can also be partially controlled via a scroll wheel on the top. Also on the top are six function buttons that can be assigned the software monitoring functions of your choice for quick recall.
On the top, bottom and right side are three 1/4"-20 mounting ports that allow horizontal and vertical mounting.
A shoe mount adapter is included to attach the monitor to your camera's hot shoe or to a cage with a shoe mount.

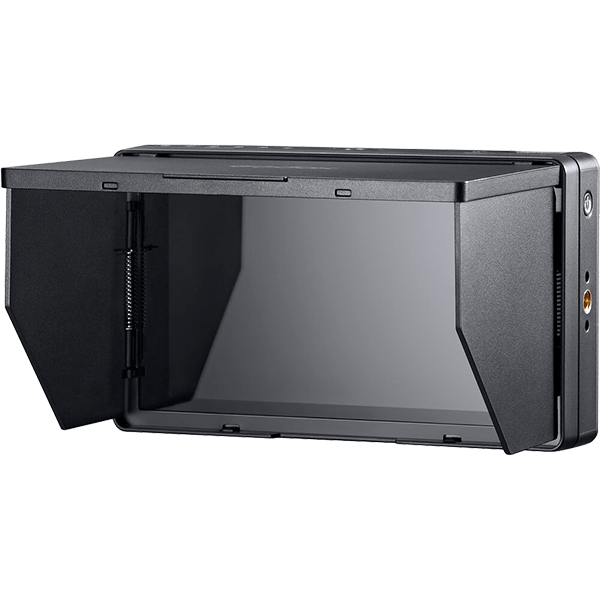

A slim, collapsible sunshade is also included and can be snapped onto the monitor to block sunlight in outdoor areas.
Software Settings Features
Rec. 709 colour space
Wrong colour
Zebra
Waveform
Vectorscope
Histogram
Focus Wizard
Safety marker
Centre marker
Audio Meter
Zoom
Grid lines
Aspect ratio (up to anamorphic 2.35:1)
Mirror image
The advantages at a glance:
Full HD 1080p touch screen display
DCI 4K24/UHD 4K30 HDMI input and output
Headphone jack / Camera control jack
3D LUT import via SD card slot
For technicians:
Display type IPS type LCD
Display size 5.5" / 14.0 cm
Aspect ratio 16:9
Viewing angle Horizontal: 160
Vertical: 160
Touchscreen Yes
Maximum brightness 410 cd/m2
Contrast ratio 1000:1
Bit depth / colour support 8-bit (16.7 million colours)
Pixels per inch (ppi) 400 ppi
Video:
1 x HDMI type A input
1 x HDMI type A output
Audio
1 x 1/8" / 3.5 mm headphone output
Built-in speaker None
Supported formats:
Video format HDMI
DCI 4K: 24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
576p: 60
576i: 50
480p: 60
480i: 60
Gamma Curve Rec709
Power supply
Battery Type 1 x Sony NP-FL series Battery Type
Power consumption 7 W
Mounting 3 x 1/4"-20 socket
Operating temperature 14 to 122°F / -10 to 50°C
General
Construction material Plastic
Dimensions 154 x 90 x 34 mm, including sunshield
Weight 318 g, including sun visor

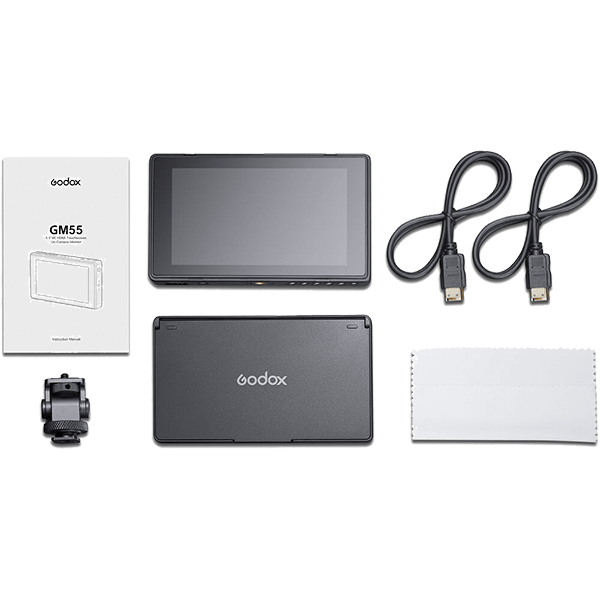

Scope of delivery:
1 x Godox GM55 5.5" 4K HDMI touchscreen monitor
1 x Sun visor
1 x Tilt shoe holder to 1/4"-20 adapter
2 x HDMI cables
1 x Screen cloth
