SmallRig Adjustable Monitor Mount 2889

SmallRig Adjustable Monitor Mount for Gimbal from DJI and ZHIYUN

SmallRig Adjustable Monitor Mount for DJI RONIN-S/RONIN-SC & ZHIYUN CRANE 2S/CRANE 3/3S/WEEBILL-S & MOZA AirCross 2 Gimbals 2889 is designed to hold monitor or accessory onto the handheld stabilizers. The mount attaches to the mounting threads of the ZHIYUN CRANE 3, CRANE 3S, WEEBILL-S, or WEEBILL LAB with a built-in thumbscrew, and a rosette adapter plate is included to attach the mount to the DJI Ronin-S or Ronin-SC with two included M4 screws. Featuring three 1/4”-20 threads for additional accessories such as Cold Shoe 1241 for microphone or sound receiver. The monitor bracket features 360° tilt and can hold a monitor rig up to 2.2 lb. The robust mount features a rubber pad to protect your monitor from scratching. Each thumbscrew features slots for Allen wrench to tighten the mounting screws.

Key Features:
1. Mounts Monitor or Accessory on Handheld Gimbal.
2. Supports Monitor up to 1kg.
3. 360° Tilt Adjustment via Knob.
4. Three 1/4"-20 Accessory Mount Threads.
5. Features Slots on Each Thumbscrew for Allen Wrench.

Note1: Maximum payload: 1kg
Note2: Please use the hex spanner to re-tighten the thumbscrew to ensure safe.
Note 3: For Moza AirCross2, please do attach the Mounting Plate 2826 first before attaching the monitor mount.

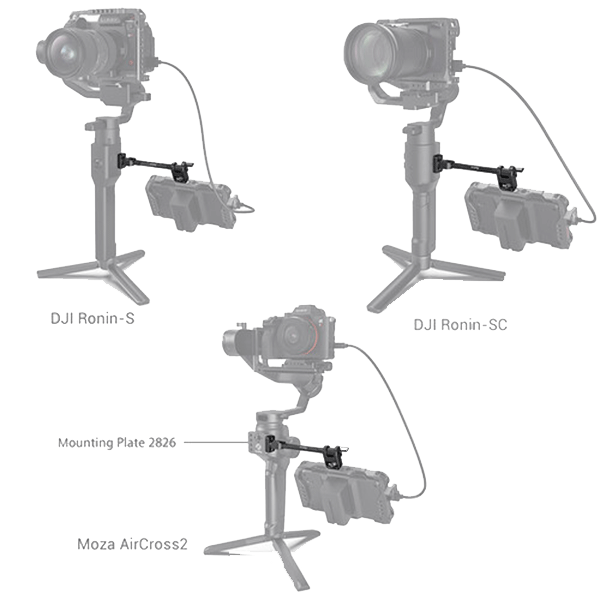

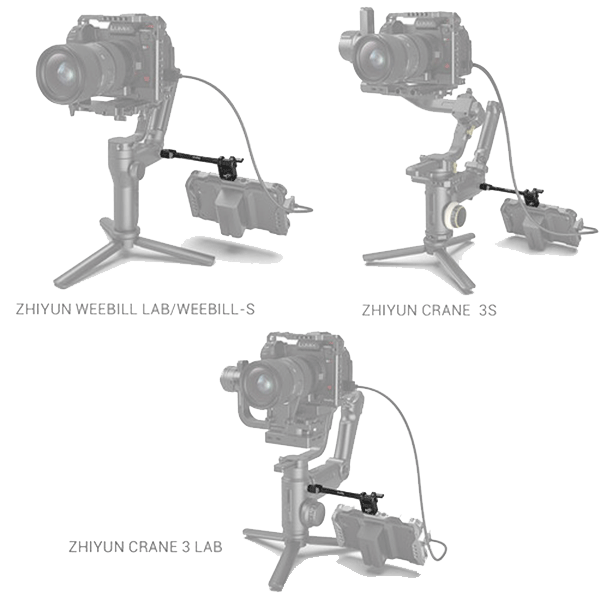

Fits the following gimbals:

• DJI RS 2/RSC 2
• DJI Ronin-S/SC
• ZHIYUN WEEBILL-S/WEEBILL LAB
• ZHIYUN CRANE 2S/3S/3 LAB
• Moza AirCross2

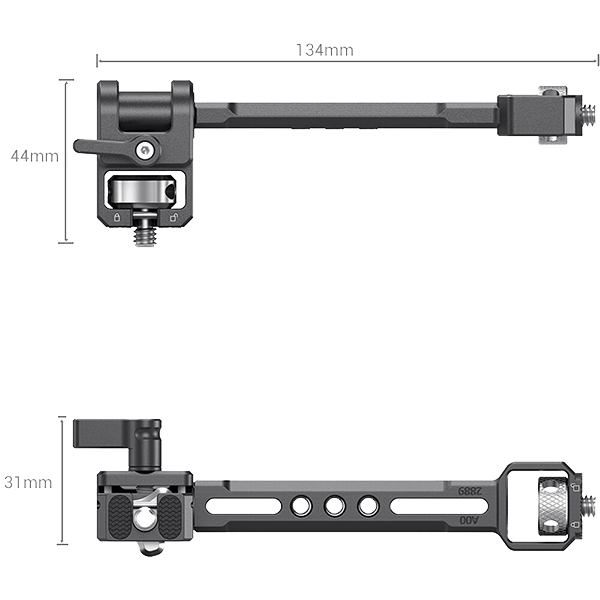

Product Dimensions: 134 x 33 x 44mm
Net Weight: 86g±5g
Material(s): Aluminum Alloy

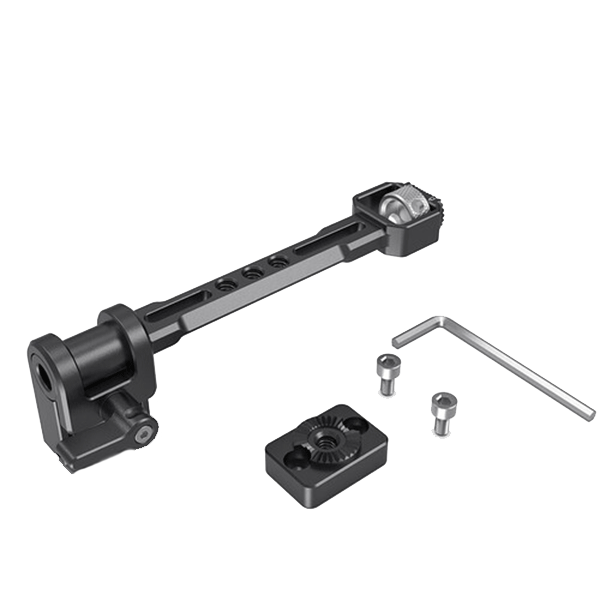

Package Includes:

1 x Monitor Mount
1 x Rosette Plate
2 x M4 Screw
1 x Allen Wrench

Note: Due to continuous efforts to improve the product and product features, both the pictures and specifications may vary slightly from the delivered product.
