Sunwayfoto DP-60R Arca-Swiss Quick Release Plate 60 mm with 1/4" and 3/8" Screws

CHF 32.00*

Prices incl. VAT plus shipping costs

2 Reviews

Ready for immediate shipment, arrival in: 1-2 Working Days
✅ Pick up after order in Langnau possible

Product number: 24A-DP-60

Our benefits

own warehouse
fast shipping
shipping with Swiss Post
pick-up after order possible

Our payment methods:

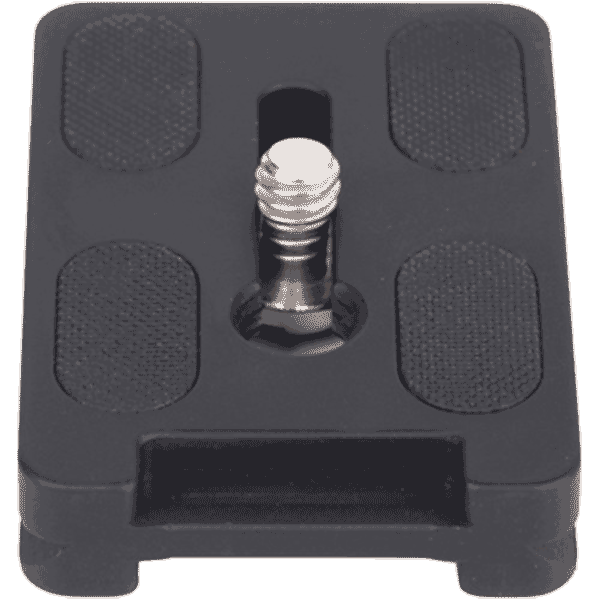

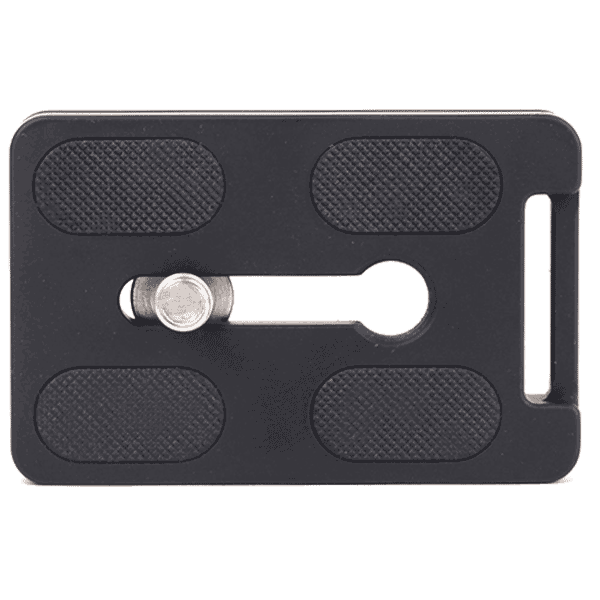

Quick to mount, secure in use: The Sunwayfoto DP-60R is a compact and versatile Arca-Swiss quick release plate for photographers who need a flexible way to attach their camera equipment to tripods and compatible mounts. Precisely CNC-machined from high-quality aluminium, it combines a robust construction with a low weight. The included 1/4"-20 and 3/8"-16 mounting screws allow you to adapt the plate to different camera connections.

60 mm Arca-Swiss-style quick release plate
Precisely CNC-machined from lightweight aircraft-grade aluminium
Compatible with Arca-Swiss clamps, including suitable Really Right Stuff lever clamps
Non-slip rubber pads for secure contact and scratch protection
Includes 1/4"-20 and 3/8"-16 mounting screws
Integrated attachment hole for a camera strap or wrist strap
Safety-stop mounting holes for additional security in compatible quick release clamps

A versatile quick release plate for your camera equipment

Arca-Swiss compatibility for flexible use

The Sunwayfoto DP-60R uses the widely adopted Arca-Swiss dovetail profile. This allows it to be used with compatible quick release clamps and tripod heads. You can mount and remove your camera quickly without having to readjust the connection between the tripod and tripod head every time. This is especially useful when changing shooting angles or switching between compatible tripod systems.

Two mounting screws for different connections

The package includes one 1/4"-20 screw and one 3/8"-16 screw. This allows you to match the mounting hardware to the threaded connection on your camera or a suitable accessory. The DP-60R is particularly suitable for cameras with standard tripod sockets and for larger camera and medium-format systems, provided the mounting thread and contact surface are compatible.

Thoughtful details for a secure fit

Non-slip rubber pads

The textured rubber pads improve contact between the camera and the quick release plate. They help reduce unwanted movement or rotation and protect the camera's mounting surface from scratches caused during tightening. This is particularly useful when shooting in portrait orientation.

Safety stops and strap attachment

Two mounting holes for safety-stop screws are located on the underside. When used with compatible quick release clamps, these stops can help prevent the plate from accidentally sliding out when the clamp is loosened. The DP-60R also features an opening for attaching a camera strap or wrist strap, making it suitable for flexible carrying setups.

Durable construction with a low weight

CNC-machined aluminium

The quick release plate is precisely CNC-machined from lightweight aircraft-grade aluminium. Its anodised finish improves resistance to abrasion and corrosion. Measuring 60 mm in length and weighing just 50 g, the plate remains compact and is suitable for mobile photography as well as studio work.

What to know before ordering

Check compatibility

The DP-60R is designed for Arca-Swiss-compatible quick release clamps. Before ordering, check that your tripod head supports the corresponding dovetail profile. Your camera must also have a suitable 1/4" or 3/8" mounting thread. Compatibility with an Arca-Swiss clamp does not automatically guarantee compatibility with every quick release system.

Technical details at a glance

Brand: Sunwayfoto
Model: DP-60R
Product type: Universal quick release plate
System: Arca-Swiss-compatible dovetail profile
Length: 60 mm
Width: 39 mm
Thickness: 10 mm
Material: Aircraft-grade aluminium
Finish: Anodised
Weight: Approx. 50 g
Mounting threads: UNC 1/4"-20 and UNC 3/8"-16
Contact surface: Non-slip rubber pads
Safety features: Two mounting holes for safety-stop screws
Additional feature: Camera strap or wrist strap attachment hole
Compatibility: Arca-Swiss clamps, including suitable Really Right Stuff clamps
Product number: 24A-DP-60

Scope of delivery

1 x Sunwayfoto DP-60R quick release plate
1 x UNC 1/4"-20 mounting screw
1 x UNC 3/8"-16 mounting screw
